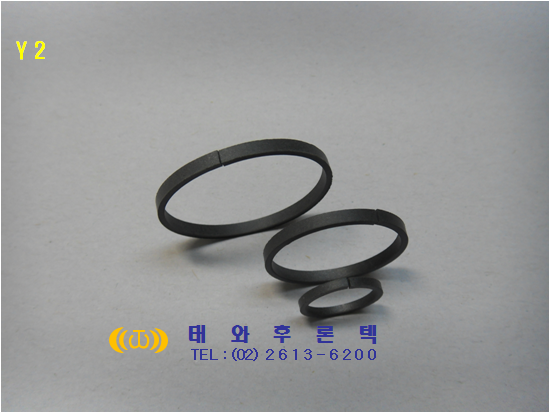

Wear ring
It is prevented from being worn out by contact between metal surfaces in cylinder sliding area.
Also, Wear ring protect to enhance the seal's function and to cushion the pressure.
Functional advantage
-
Precision guide role
-
High load bearing strength function
-
Excellent wear resistance and abrasion resistance
-
Possible increased gap teflon
-
Lateral and mechanical vibration absorption
-
External material intrusion prevention
-
Preventing Overload and abrasion on Seal
Feature
PTFE + Bronze
▶ Features: wear resistance, temperature resistance,
chemical resistance, low friction
▶ Temperature: -40°C ~ 180°C
▶ Speed: Up to 15m/s for round trip, 1m/s for rotation.
▶ Dynamic compressive strength:
Up to 150 bar based on 60°C(depending on temperature)
Polyeste
▶ Features: wear/dimension stability, low friction,
high load application
▶ Temperature: -50°C ~ 130°C
▶ Speed: 1m/s maximum when reciprocating
▶ Dynamic compressive strength:
Up to 900 bar based on 60°C (depending on temperature)
Applied field
Automation industry, food, heavy equipment, ships, medical, hydraulic press, casting equipment, mining, agricultural machinery, machinery, water pressure strengthening devices, etc.
